The XORAYA N4000. The latest generation of X2E’s high performance automotive data loggers. In comparison to its predecessor (XORAYA Z7), it’s a significantly more powerful hardware. Recording data with up to 3 Gbit/s. Plus, the logger is now equipped with an SFP+ interface (for 10GBase-T) and a hermetically sealed, active cooling system.
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
The XORAYA N4000. The latest generation of X2E’s high performance automotive data loggers. In comparison to its predecessor (XORAYA Z7), it’s a significantly more powerful hardware. Recording data with up to 3 Gbit/s. Plus, the logger is now equipped with an SFP+ interface (for 10GBase-T) and a hermetically sealed, active cooling system.
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
The XORAYA N4000. The latest generation of X2E’s high performance automotive data loggers. In comparison to its predecessor (XORAYA Z7), it’s a significantly more powerful hardware. Recording data with up to 3 Gbit/s. Plus, the logger is now equipped with an SFP+ interface (for 10GBase-T) and a hermetically sealed, active cooling system.
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
-
The rationale behind providing tailored quotes for certain products is quite simple.
As each customer's product specifications are distinct, it is essential for us to prepare a customized quotation to accurately meet your needs, and emphasize the unique customization options available.
Furthermore, our diverse product offerings encompass numerous variations, that are too extensive to list comprehensively, allowing us to cater to your specific 'uniqueness' preferences.
By contacting us, you can be assured that we will identify, and price the most suitable unit for your particular requirements.
We commit to responding within 24 hours or less, offering you a precise, all-inclusive price that includes delivery to your doorstep. This approach eliminates any unexpected costs, allowing you to know precisely the amount you will be required to pay.

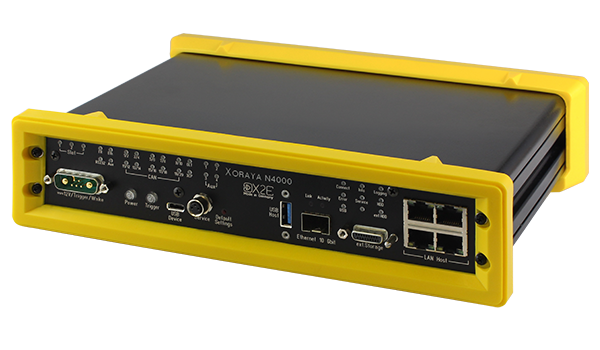

The XORAYA N4000 is a high-performance automotive data logger with customizable interfaces based on the Xilinx Zynq® Ultra-Scale+™. The latest generation of X2E’s high-performance automotive data logger. In comparison to its predecessor XORAYA Z7, it has more powerful hardware. This means data can be recorded at up to 3 Gbit/s. Also, the data logger now has an SFP+ interface as standard, PLUS 8x Gbit Ethernet interfaces and hermetically sealed active cooling.
As with the predecessor, the measurement data are either written to the internal hard drive with a precise, central time stamp with a resolution of 100 ns or transferred to an external computer system via the Ethernet interface. Optionally, the data can also be stored on an external storage unit. A built-in supercap unit protects against data loss in the event of voltage fluctuations.

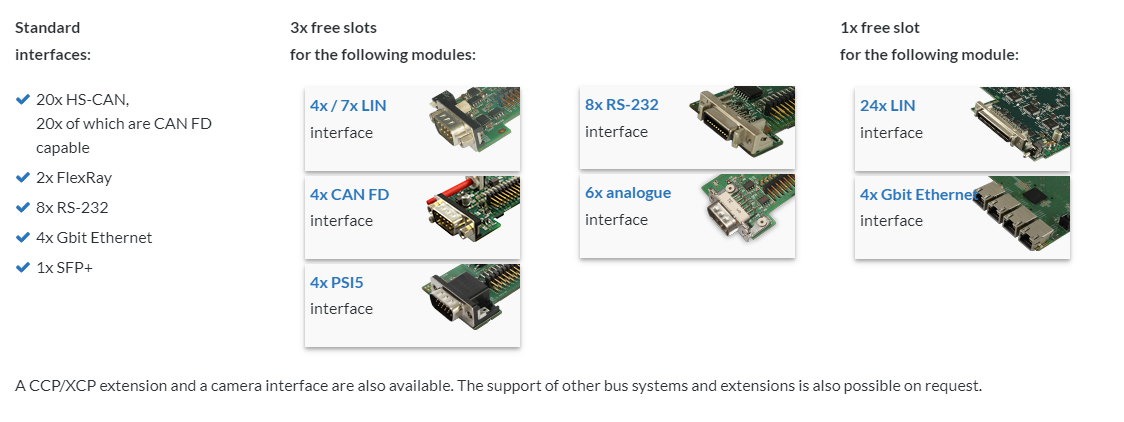

In addition to a standard interface configuration, the data logger has 4 configurable slots for expanding the device with additional interfaces. The XORAYA N4000 currently supports the following modules:
