Exxotest DLX-MUXDIAG-II
Single Channel Data Logger
Price Range From £1554-£2100
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
Single Channel Data Logger
Price Range From £1554-£2100
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
Single Channel Data Logger
Price Range From £1554-£2100
PLEASE CONTACT US FOR YOUR REQUIREMENTS and PRICES BELOW…..
-
The rationale behind providing tailored quotes for certain products is quite simple. As each customer's product specifications are distinct, it is essential for us to prepare a customized quotation to accurately meet your needs, and emphasize the unique customization options available. Furthermore, our diverse product offerings encompass numerous variations, that are too extensive to list comprehensively, allowing us to cater to your specific 'uniqueness' preferences.
By contacting us, you can be assured that we will identify, and price the most suitable unit for your particular requirements. We commit to responding within 24 hours or less, offering you a precise, all-inclusive price that includes delivery to your doorstep. This approach eliminates any unexpected costs, allowing you to know precisely the amount you will be required to pay.
Additional Information:

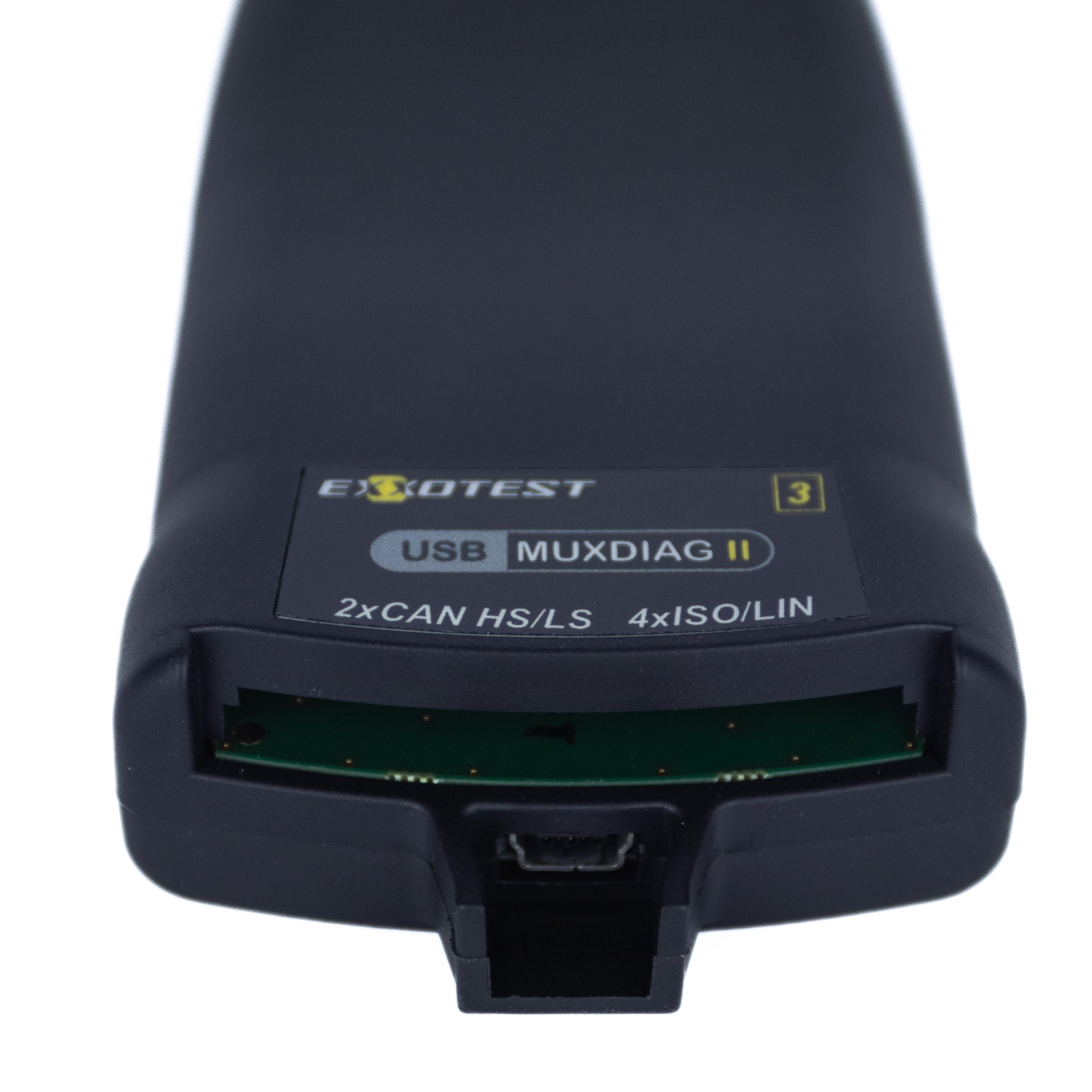

The DLX-MUXDIAG-II is a compact data logger which is particularly well suited to “on-road” applications. It’s used to log the data flowing simultaneously on 1 CAN High Speed or Low-Speed link, 1 CAN HS link, 2 ISO9141 links, 2 LIN links and on 2 ANA/binary inputs.
Supplied with a memory capacity of 16GB (expandable), a wired remote control, and the Exxotest Data Logger Control app for Windows OS (used to configure the Data Logger).
The range of pinout options on the 16-channel, “OBD” SAE J1962 connector, controlled by the allocation of the non-standardized channels, is covered by several versions of the DLX-MUXDIAG-II product, each of which is tailored to the various manufacturers.
Variations:
DLC – ‘Closed’ unit version with protected and non-removable memory card (integrated into the unit), fitted with a standard 16-channel SAE J1962 connector:
DLC (Industrial) – Rugged ‘Closed’ unit version with protected and non-removable memory card (integrated into the unit), fitted with an industrial, 16-channel SAE J1962 connector (non-intrusive plunger contacts):
DLO – ‘Open’ unit version with removable memory card fitted with a standard 16-channel SAE J1962 connector:
Supplied With:
Includes DLC Software Application: DLC LINK
USB Cable
Development Kit
Remote Control
USB Drivers
16GB High-Performance Memory Card
User Documentation
Download DLC Data Sheet here
Download DLO Data Sheet here
