AEM Mixed Mode Multi-Port Vector Network Analyzer - (MMVNA)

The MMVNA performs mixed-mode S-parameter testing in single-ended or dual-ended configuration. The easy to customize Linux based programming interface, and configurable measurement parameters make MMVNA an ideal tool for automotive cabling test.

MMVNA is an 8-port small form factor RF network analyzer designed for use in laboratory and manufacturing environments where qualification of cabling and connectors such as those used in the Automotive, Telecom industries.

These solutions were designed and developed by a team with more than four decades of test and measurement experience to draw upon, giving rise to disruptive innovations and several industry firsts at a fraction of the cost of older technologies.

Overview:

Mixed Mode Multi-Port VNA (MMVNA) is a portable vector network analyzer that is purpose-built for characterizing twisted pair and coax cables and components. Balanced transmission is finding increasing adoption. MMVNA is a user-friendly, versatile analyzer that is most often deployed in manufacturing and lab tests of IoT applications, specialty sensor connections, and automotive wiring harness testing.

In a matter of seconds, the MMVNA can measure 256 different S-parameter combinations in a single measurement sweep. The VNA Manager software provides an easy way to configure required S-parameters and arrange them in convenient views and reports. MMVNA is IP addressable, so you can ensure uniform testing methodology across distributed locations with remote configuration capability.

Contact us at here for more information and to schedule a virtual product demonstration.

Advantages

Compact and extensible–8-port form-factor extensible to higher port densities in multiples of 8. Primarily used in laboratory and manufacturing environments for automotive wiring harness and telecommunications cable testing.

4x Differential Measurement Ports–Each port features its own transmitter and receiver, enabling fast, concurrent measurements on all ports. For application such as harness testing, this means a considerable saving of table space and test time.

Scalable Measurement System–The VNA Manager software can control and collect data from multiple MMVNA units and make uniform presentation. This is particularly helpful in testing complex multi-wire harnesses with a single measurement command.

Remote management–The MMVNA is IP addressable enabling remote management and data acquisition for inline manufacturing testing.

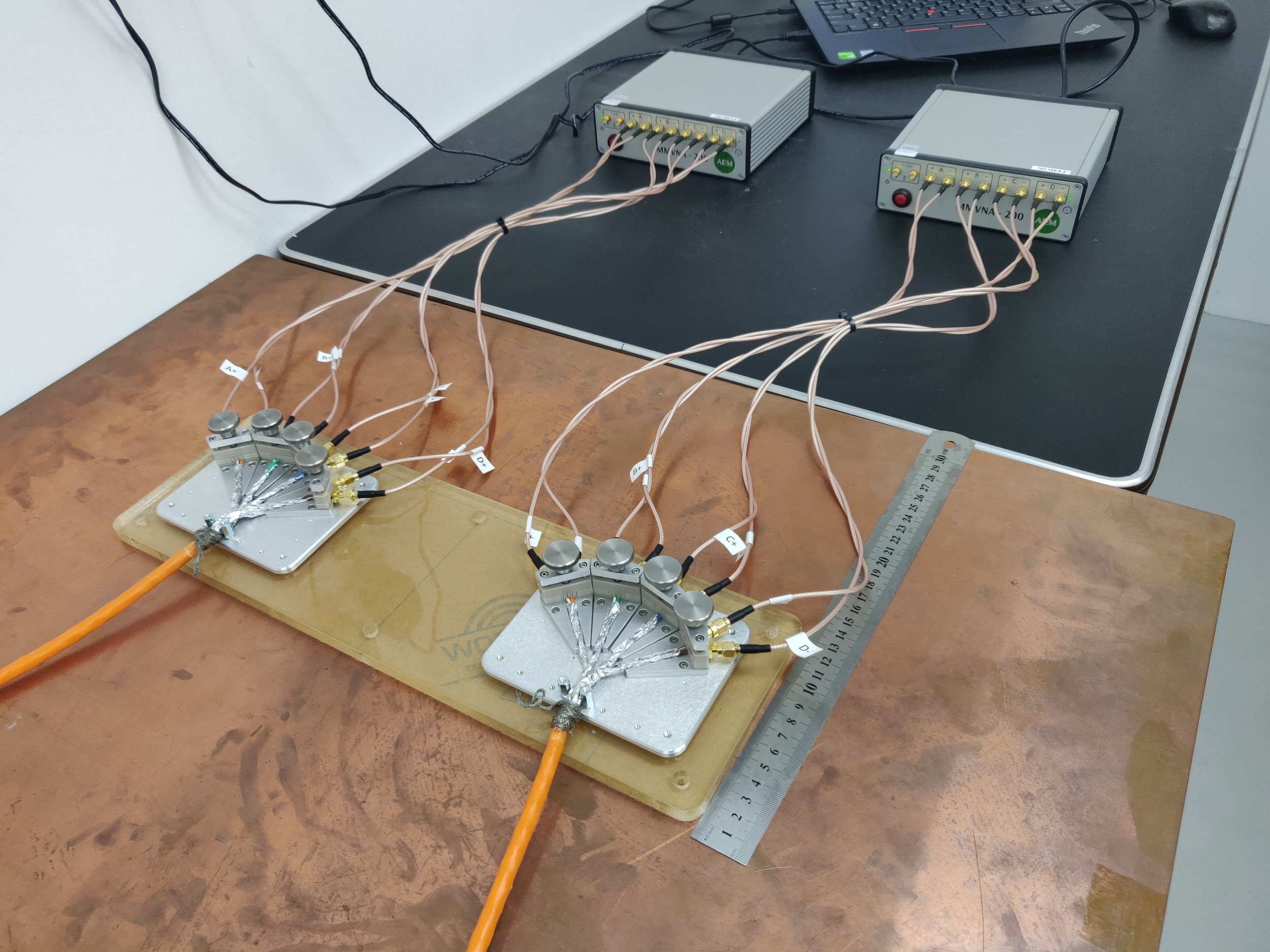

Test configurations–DUT end points are not required to connect to common test interface. The 16-port option is deployed as two 8-port devices that communicate over the DUT rather than fixed backplane enabling assembly and cable testing where ends are spatially separated.

Standards Compliant–Adheres to Open Alliance, BroadR-Reach, 802.3bw, 802.3bp and 802.3ch (draft) for the following s-parameter tests:

• Link segments and components; cables, connectors, and wire harnesses

• Open Alliance VNA Reference Measurements

• Equipment connector interfaces (ECU, MDI)

• Transmitter’s and receiver’s

VNA Manager–The companion VNA Manager is the control software for the MMVNA settings of all S-Parameters, test initiation and saving of test data. Touchstone and comma separated variable (csv) measurement data output format.
